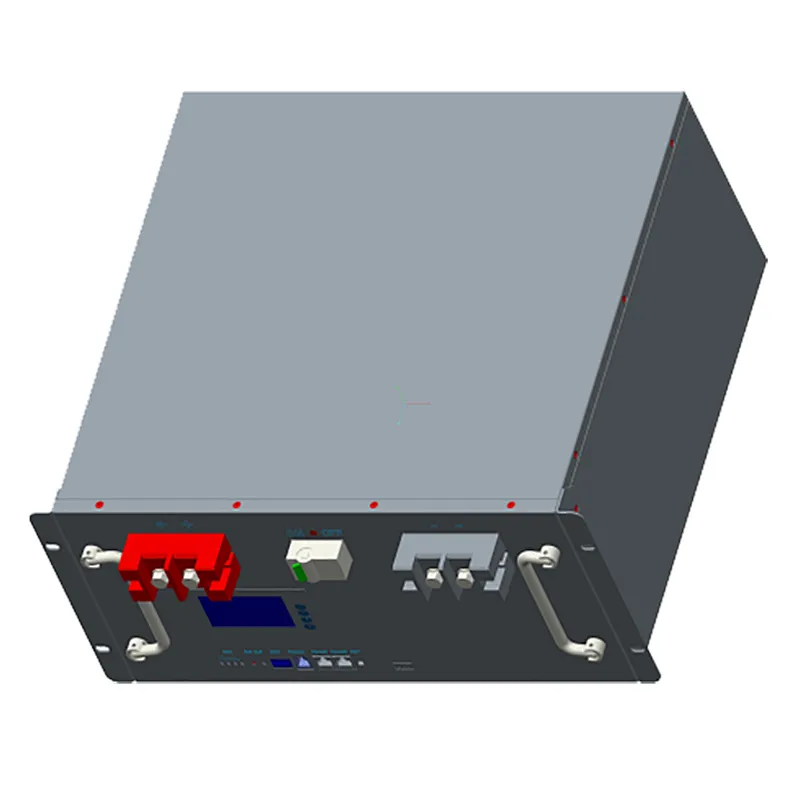

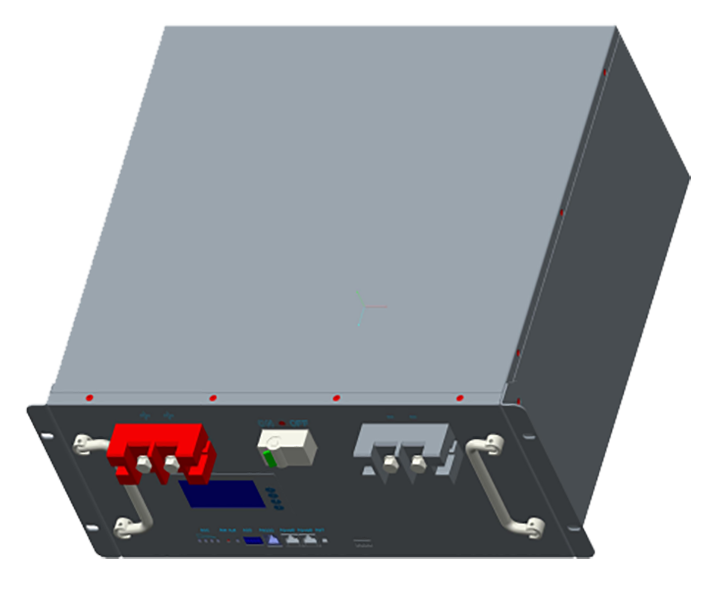

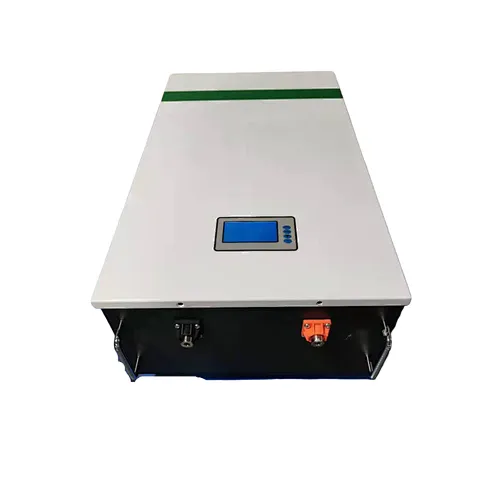

This Lifepo4 BMS 48v 5kwh battery is a deep cycle battery, widely used in solar systems and electric vehicles to replace lead-acid battery packs.
48v Lifepo4 lithium battery pack is powerful, long-lasting, and has a long cycle life, so it is usually used in renewable energy applications as a lithium storage battery. This 5kwh LifePo4 lithium battery matches most basic solar charge controllers and requires a similar voltage to AGM batteries (a type of sealed lead-acid battery), so it charges conveniently.
The BMS system inside this 48V 5Kwh lithium battery avoids over-charging, over-discharging, or excessive battery temperature.
XD is not only a China manufacturer and supplier but also a source factory. We provide high-end OEM and ODM lithium batteries. The bulk price and wholesale quality we provide will surely make you satisfied. Inquiry for customized service now!
Product Description
A lithium storage battery long life lithium battery is easier to charge in many respects than a lead-acid battery: lithium storage battery long life lithium battery charges as long as the charge voltage is strong enough to transport ions. Lithium-ion batteries don't mind if they aren't fully charged; in fact, if they aren't, they last longer. There is no sulphation, no equalization, the absorption time is irrelevant, the battery cannot be overcharged, and the BMS ensures that everything stays within reasonable limits.
Parameter
Serial number | project | General parameters |
1 | Number of series | 16S |
2 | Rated voltage | 51.2V or 48V |
3 | End of discharge voltage | 43.2V or |
4 | Charging voltage | Recommend 56.4V (56V – 58.4V) |
5 | Internal resistance (battery pack) | ≤100mΩ |
6 | Self-discharge rate | ≤2%/month |
7 | range of working temperature | 0～65℃ charge |
8 | Storage temperature range | -40～70℃ |
9 | Positive and negative lead way | Terminal 4P*1 Fence terminal*1 |
10 | Display screen | LED display, four physical buttons |
11 | Protective function | Overcharge, over discharge, short circuit, overload, over temperature, etc. |
12 | Shipment product charge | 50% power when delivery |
13 | Packing material | Carton or Wooden box |
Rv lithium battery pack lithium storage batteries are easy to store, even for longer durations, due to their low self-discharge rate. A rv lithium battery pack, lithium storage battery can be stored for a year with no trouble; just make sure it is charged before doing so. A percentage of 50-60% is excellent, as this will provide the battery a long period before self-discharge gets the Voltage way too close to the critical threshold. If you need to store batteries for longer periods, be sure to simply disconnect all wires from them. That way there can not be any stray loads that slowly discharge the rv lithium battery pack lithium storage battery.
.
Battery Management System
S/N | function name | Function setting | Cell voltage alarm | Settings Value | Reference setting range |
1 | Monomer over-voltage protection | Turn on | Over-voltage protection voltage | 3750mV | 3000~6000mV |
2 | Cell under-voltage protection | Turn on | Under-voltage protection voltage | 2700mV | 100~3200mV |
3 | Battery over-voltage protection | Turn on | Over-voltage protection voltage | 57.6V | 40.0V~60.0V |
4 | Battery under-voltage protection | Turn on | Under-voltage protection voltage | 43.2V | 30.0V~60.0V |
5 | Cell high temperature protection | Turn on | Cell high temperature protection | 65℃ | 30℃~90℃ |
6 | Charging low temperature protection | Turn on | Charging low temperature protection | 0℃ | -5~5℃ |
7 | Discharge low temperature protection | Turn on | Discharge low temperature protection | -20℃ | -40~-10℃ |
8 | Overcurrent protection | Turn on | Overcurrent protection | 105A | 0A~110A |

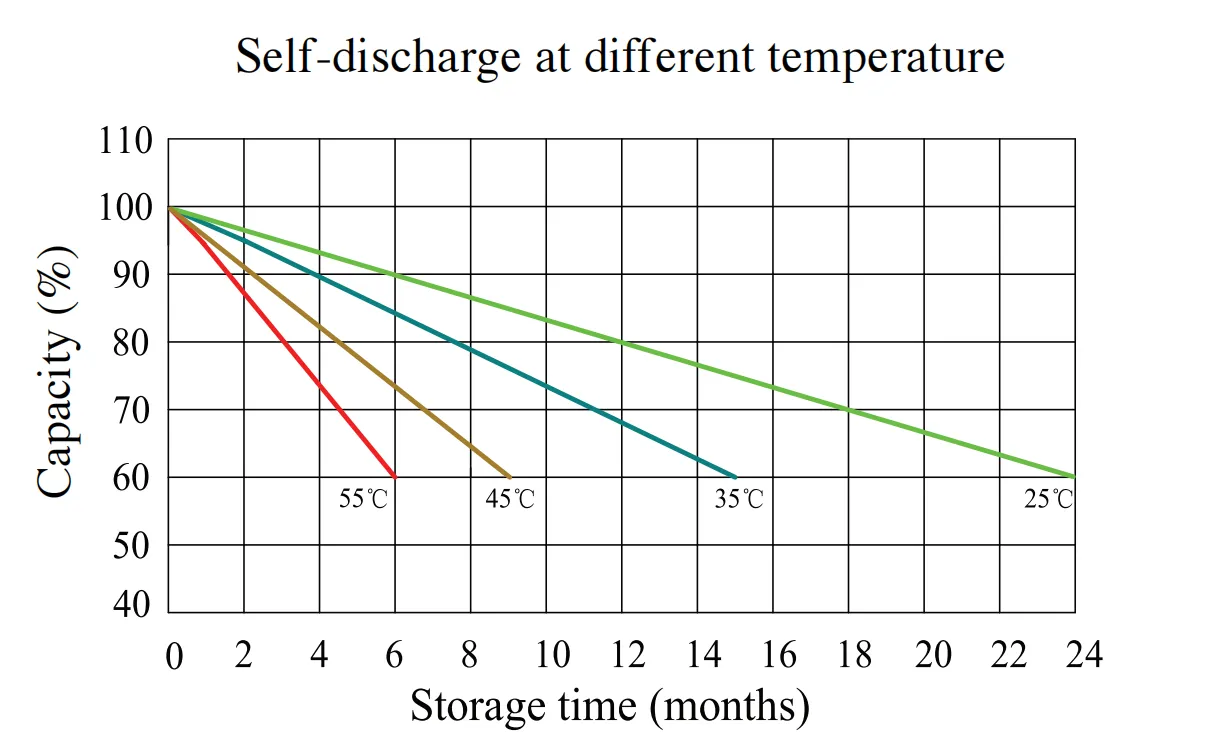

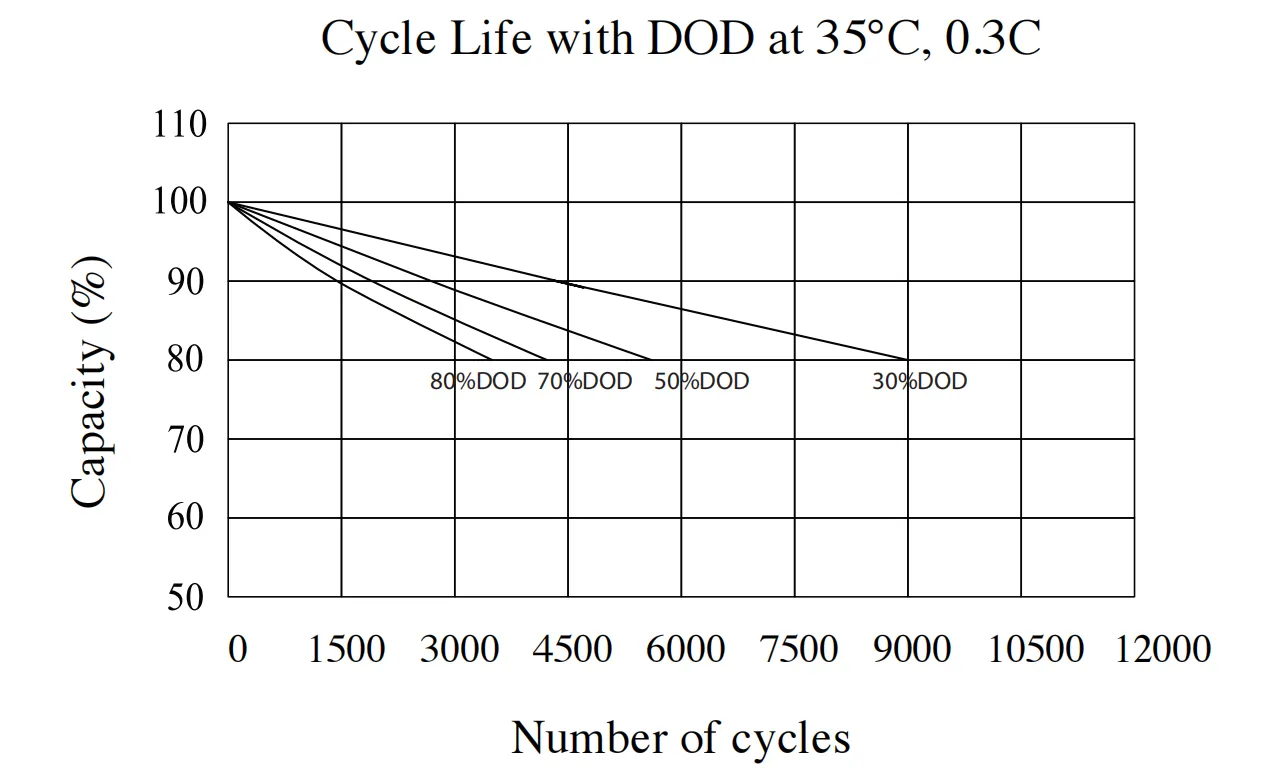

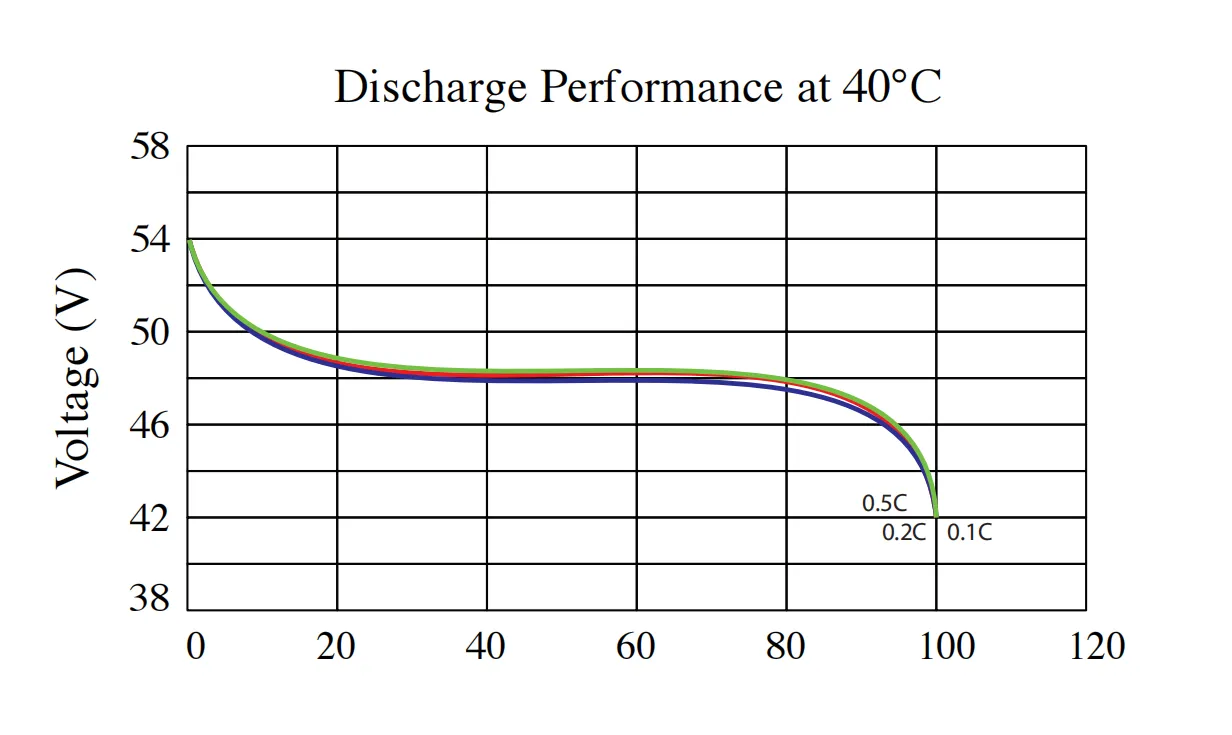

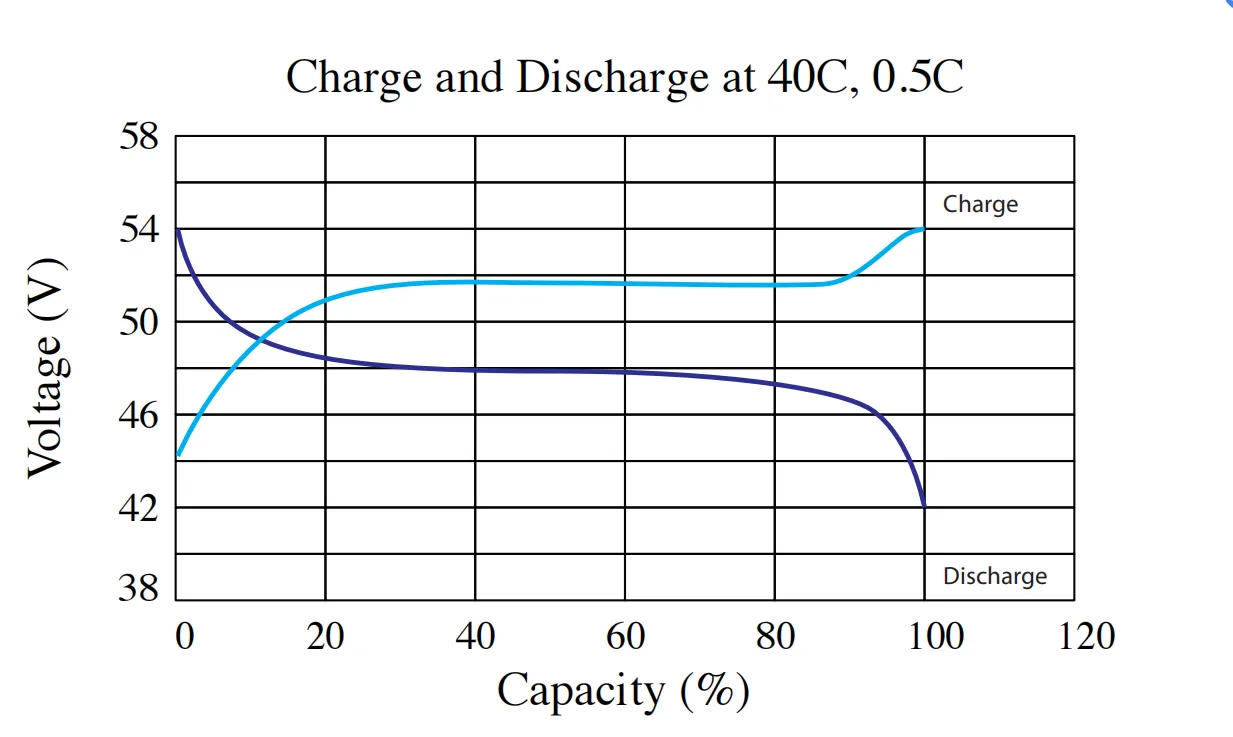

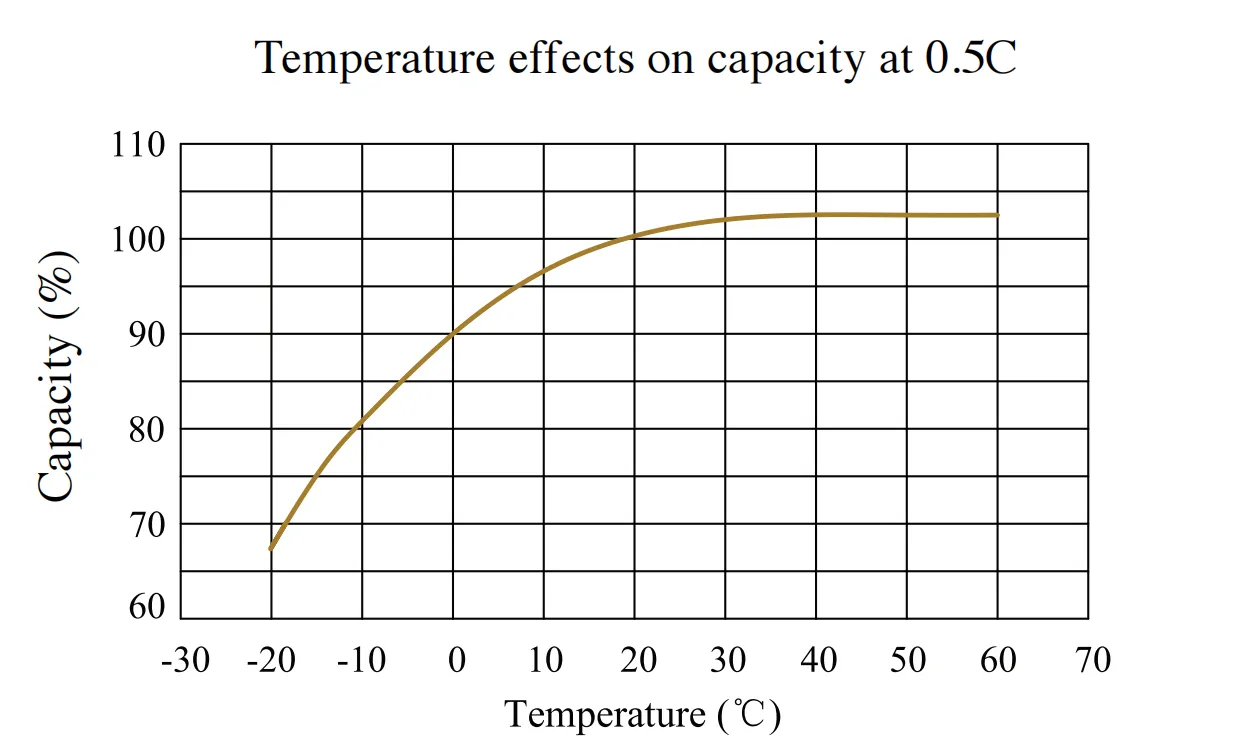

Performance Curves
XD Battery is professional in lithium iron phosphate battery and lead acid battery, if you are looking for lifepo4 battery manufacturer and supplier, XD must be your best choice. We provide 12V, 24V, 48V lifepo4 battery with complete capacity, customized needs also can be accepted. Wholesale lifepo4 battery from XD.
