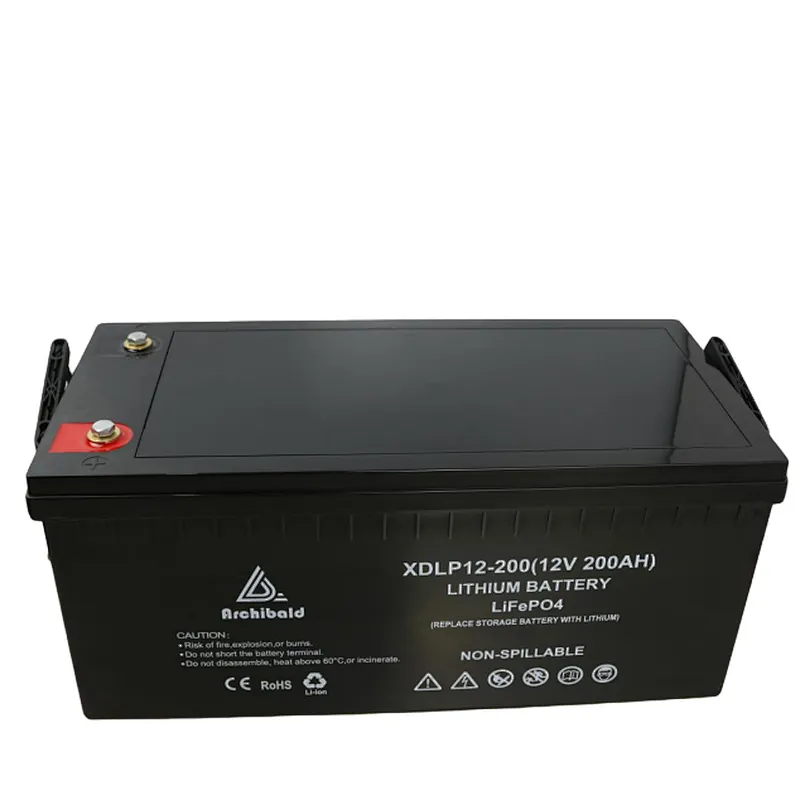

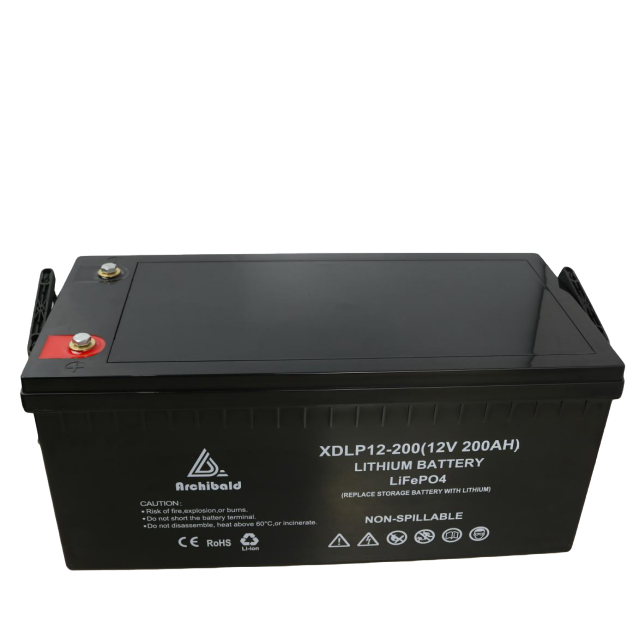

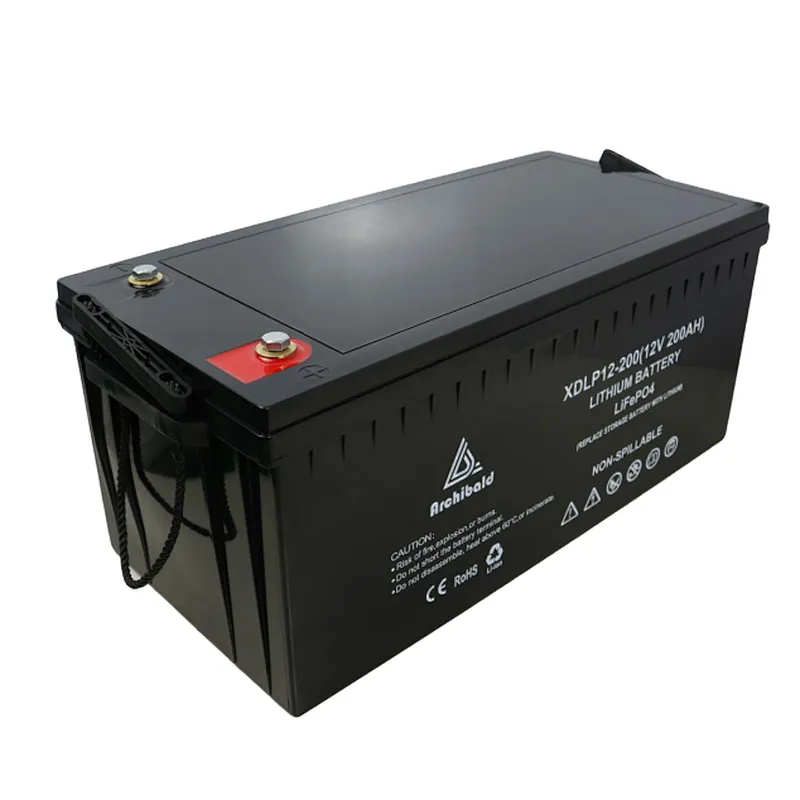

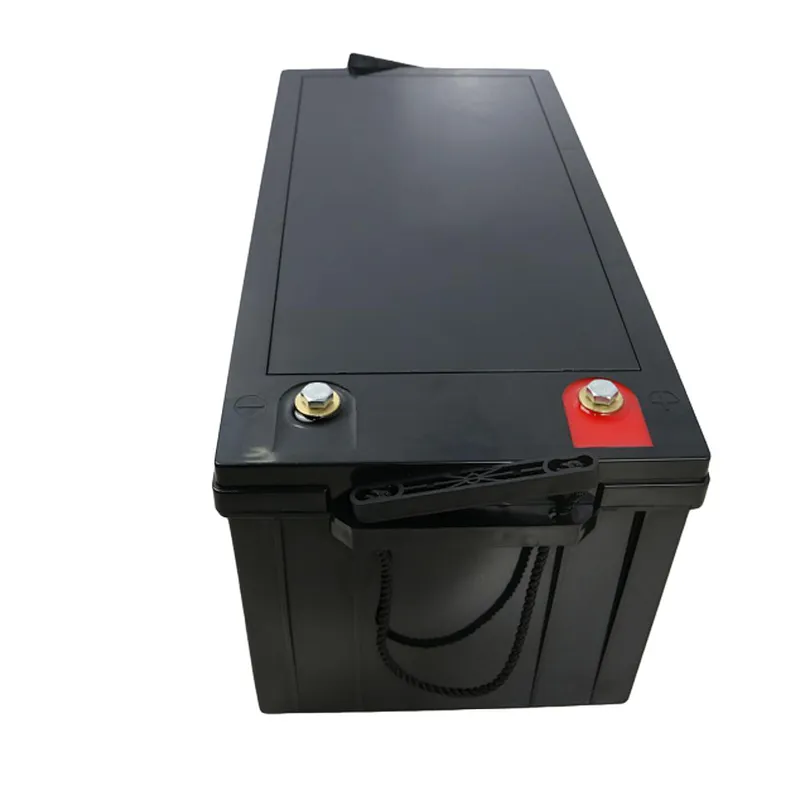

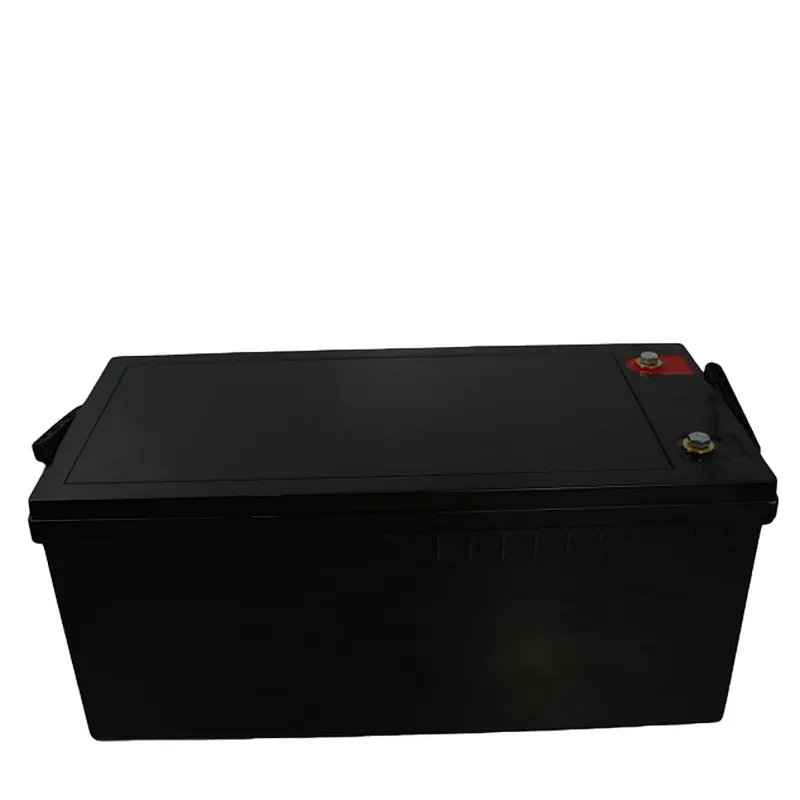

These 12V 200 Ah lithium phosphate batteries are ready to replace the heavy-duty lead-acid battery pack in your yacht, RV, or solar system! They can charge up to 100% rated capacity. Compared to a general lead-acid battery, they are smaller, lighter, and have a longer life.
Lifepo4 batteries require no maintenance and last ten times longer than gel, AGM, or lead acid. Although lithium phosphate batteries are more expensive than GEL, AGM, or lead acid at first, their total cost for the whole life is much lower.
The Lifepo4 12v 200 Ah battery achieves constant and excellent performance in any circumstance for RVs, campers, sailing boats, catamarans, battery-based solar systems, and other deep cycle applications.
We are a large-scale supplier and manufacturer of 12v 200ah lithium from China with 16+ Yrs experience, a self-developed factory, and an advanced customized system. Working with us, you will purchase OEM and OEM 12v 200ah lithium at the best wholesale price. Inquiry for bulk details now!
Basic Electrical Specification
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 210 Ah |
| Energy | 2688 Wh |
| Resistance | ≤0.5mΩ |
| Efficiency | 99% |
| Self Discharge | ≤3% per month |
| Parallel Connection - Max Modules | 15 |
| Series Connection | 12, 24, 36, 48V |
Charge Specification
| Recommended Charge Current | 50A - (Range: 0.2C-0.5C) |
| Maximum Charge Current | 200 A |
| Recommended Charge Voltage | 14.6 V |
| BMS Charge Voltage Cut-Off | 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 14.2 V (3.8 ±0.05 vpc) |
| Balancing Voltage | 13.62 V (3.6 ±0.025 vpc) |
Discharge Specification
| Maximum Continuous Discharge Current | 200 A |
| Peak Discharge Current | 300A(3-5s) |
| BMS Discharge Current Cut-Off | 600A(150ms) |
| Recommended Low Voltage Disconnect | 10.5 V |
| BMS Discharge Voltage Cut-Off | 9.4 V (2.0 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage | 10.2 V (2.3 ±0.1 vpc) |
| Short Circuit Protection | 200-300 µs |
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 176 ºF (80 ºC) |
| Reconnect Temperature | 122 ºF (50 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
Mechanical Specifications
| Dimensions (L x W x H) | 19.02×6.69×9.45"（483×170×240mm） |
| Weight | 48.5 lbs (22kg) |
| Terminal Type | M8 (22mm) |
| Terminal Torque | 10 ~12 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Brand | EVE Energy Co., Ltd |
| Product | Prismatic Aluminum-clad LFP Battery |
| Model | LF105 |
| Specification | 3.2 V / 105 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
