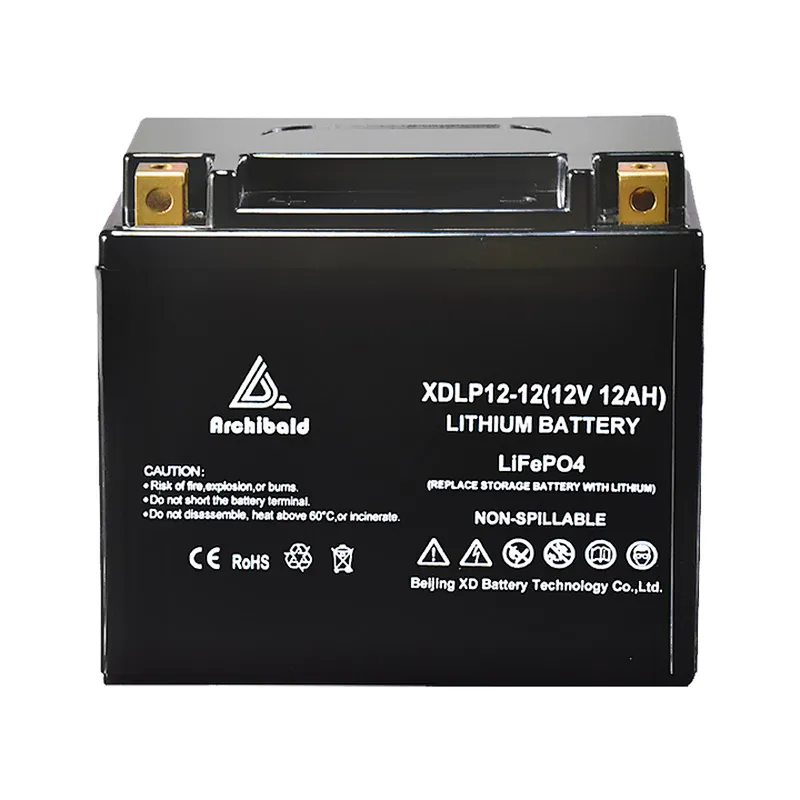

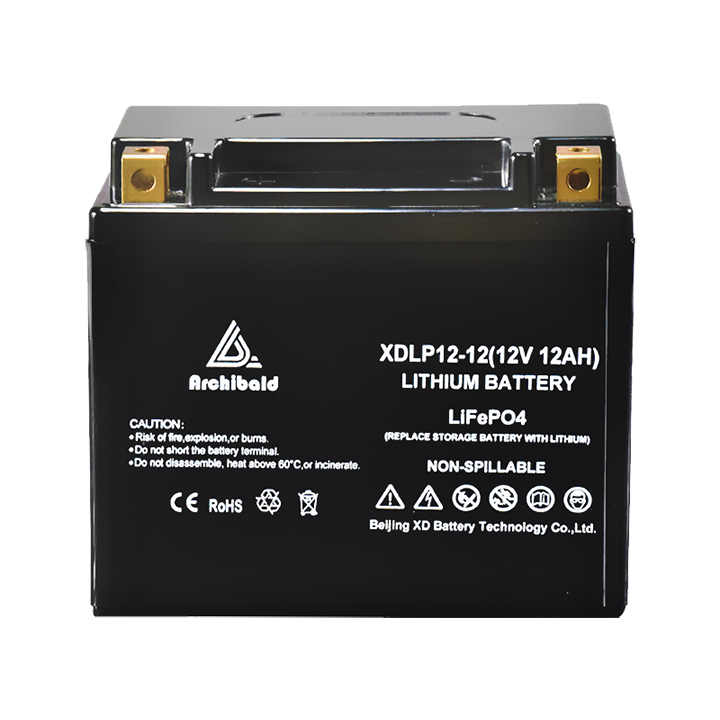

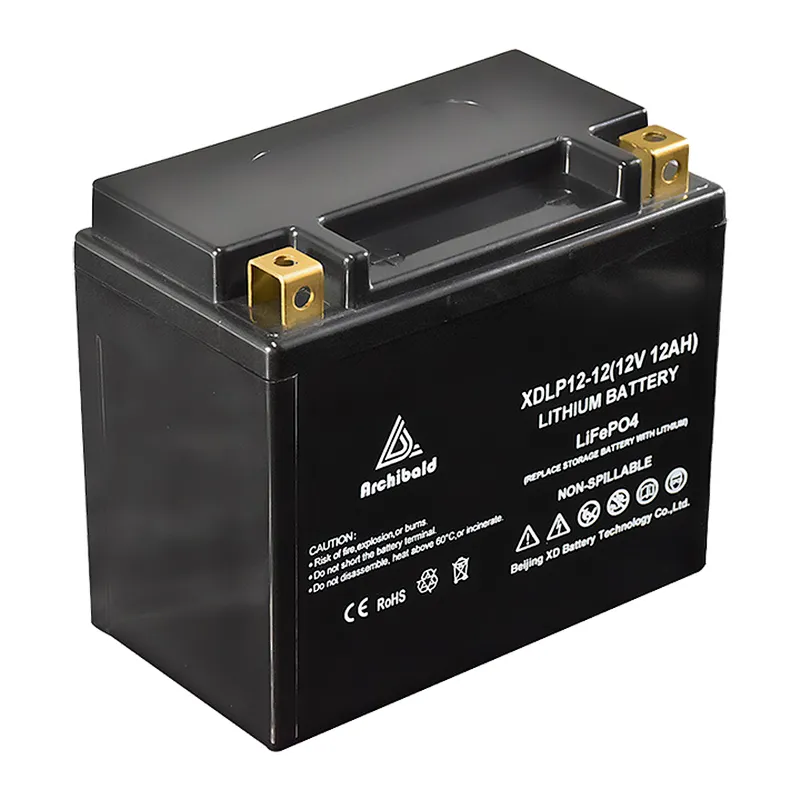

Why choose our 12v 12ah Lifepo4?
Long Life
Compared with other lithium-ion batteries, our 12v 12ah Lifepo4 lithium batteries have a longer life cycle. Based on the excellent discharge rate, LifePo4 has wide applications.
Environmental Friendly
Lifepo4 lithium battery, also known as lithium iron phosphate battery, does not contain any toxic or harmful substances, which reduces environmental pollution and improves safety during use and recycling.
Low Weight
Compared with general lead-acid batteries, these 12v 12ah Lifepo4 are smaller and lighter. That compact structure is very convenient for storage and use. These 12v 12ah LiFePO4 batteries are truly user-friendly products because they do not require startup and maintenance.
In addition, our 12v 12ah Lifepo4 batteries have high safety and excellent performance to withstand extreme environments. If you are looking for a high-yield investment, you must not miss the Lifepo4 battery!
What will you get in XD Battery? You will get flexible OEM and ODM, certified customized 12v 12ah Lifepo4, and factory bulk prices. As a 16 Yrs wholesaler & manufacturer, we achieve long-term cooperation with many well-known brands. Choose XD as your best China supplier!
Charge Specification
| Recommended Charge Current | 5A-10A |
| Maximum Continous Charge Current | 10A |
| Recommended Charge Voltage | 14.6 V |
| BMS Charge Voltage Cut-Off | 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 12 V (3.8 ±0.05 vpc) |
| Balancing Voltage | 13.6 V (3.6 ±0.025 vpc) |
Discharge Specification
| Maximum Continuous Discharge Current | 15A |
| Peak Discharge Current | 30A (<5s) |
| BMS Discharge Current Cut-Off | 30A |
| Recommended Low Voltage Disconnect | 10.8V |
| BMS Discharge Voltage Cut-Off | 10.8V (2.7±0.05vpc) |
| Reconnect Voltage | 11.6 (2.9±0.1vpc) |
| Short Circuit Protection | 200-300 µs |
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 170 ºF (77 ºC) |
| Reconnect Temperature | 163 ºF (73 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
Mechanical Specifications
| Dimensions (L x W x H) | 151*99*99mm (5.94x3.89x3.89”) |
| Weight | 1.45 kg (3.2 lbs) |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Product | Prismatic Aluminum-clad LFP Battery |
| Model | HB1212 |
| Specification | 3.2 V / 12 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
