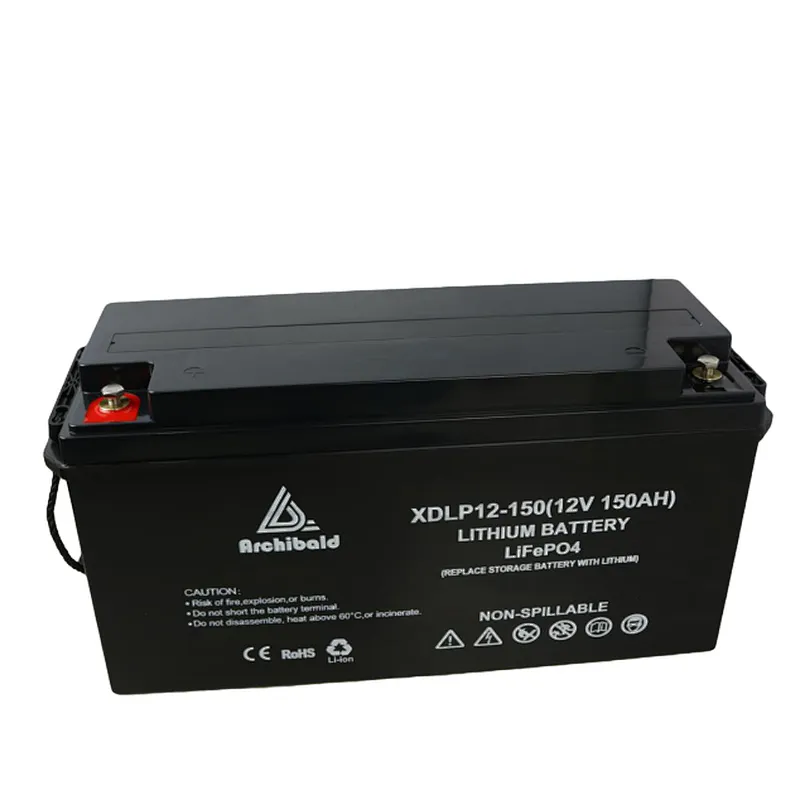

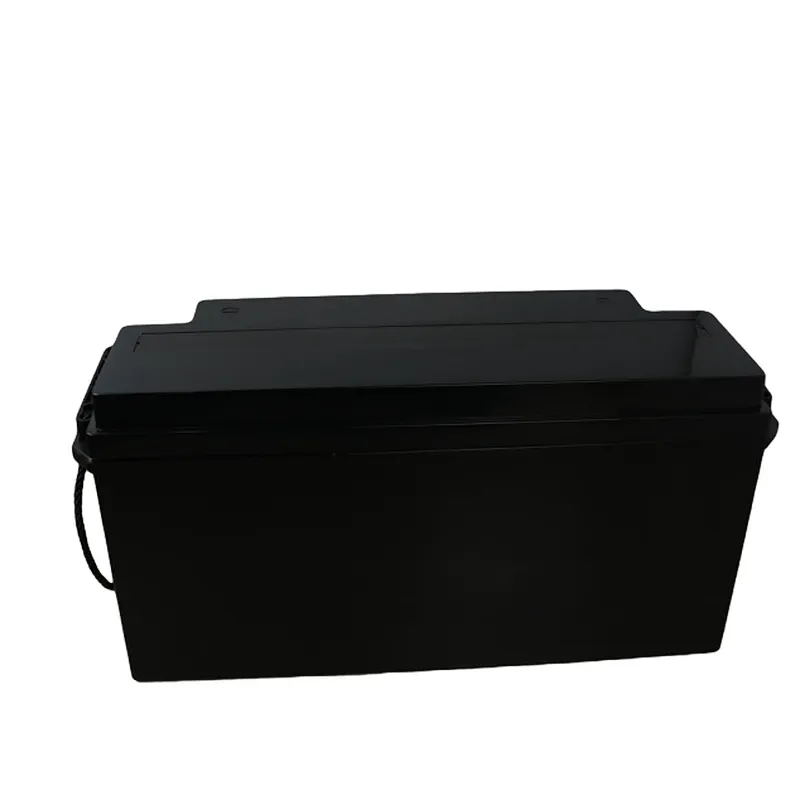

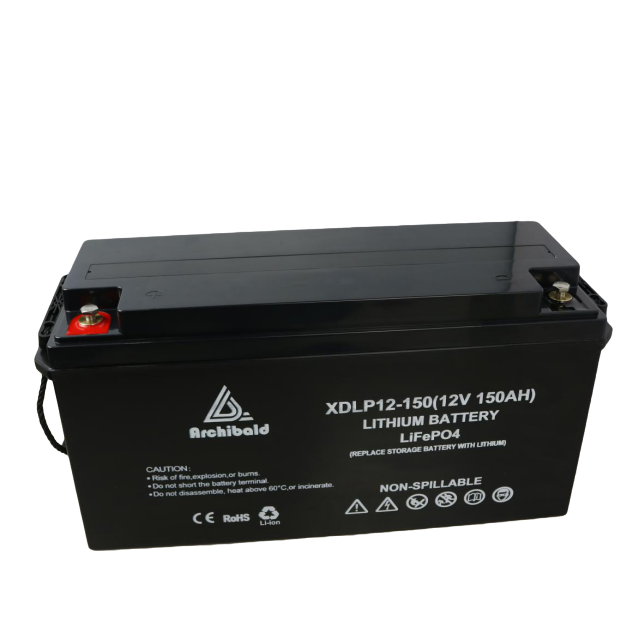

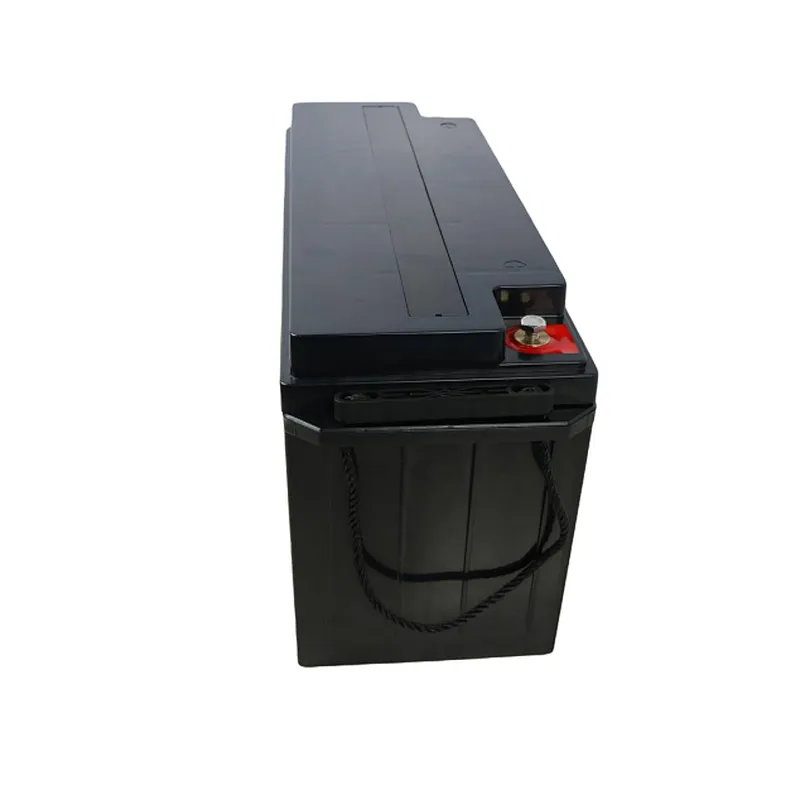

Lithium iron phosphate batteries are not the same as lithium-ion batteries. These 12V 150AH batteries are more efficient and lighter than conventional batteries. Users can use most of the battery capacity without worry.
LiFePO4 batteries are the safest lithium batteries because they don't catch fire and don't overheat. Even if the battery is damaged, it will not catch fire.
These 12V 150AH LiFePO4 batteries are more expensive because the materials used to make them are more expensive. But in the long run, they are cheaper and more profitable.
Because of the unsurpassed safety and environmental protection, these 12V 150AH lithium batteries have wide applications. Whether for electronic machines, military, medical applications, or electric motors, they are premium choices.
Are you looking for a 12v 150ah Lifepo4 supplier in China? Contact us now! We are a manufacturer & factory founded in 2006, exporting lithium batteries to 120 + countries and regions. In order to follow the market trends, we have advanced OEM and ODM equipment and management system to produce high-quality customized batteries. For 16 years, we wholesale more convenient and more effective lithium batteries. Never miss our Lifepo4 lithium battery at competing bulk prices!
Charge Specification
| Recommended Charge Current | 25A - (Range: 0.2C-0.5C) |
| Maximum Charge Current | 100 A (1C) |
| Recommended Charge Voltage | 14.6 V |
| BMS Charge Voltage Cut-Off | 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 14.2 V (3.8 ±0.05 vpc) |
| Balancing Voltage | 13.62 V (3.6 ±0.025 vpc) |
Discharge Specification
| Maximum Continuous Discharge Current | 100A (150A BMS) |
| Peak Discharge Current | 250A（3-5s） |
| BMS Discharge Current Cut-Off | 450A(300ms) |
| Recommended Low Voltage Disconnect | 10.5 V |
| BMS Discharge Voltage Cut-Off | 9.4 V (2.0 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage | 10.2 V (2.3 ±0.1 vpc) |
| Short Circuit Protection | 200-300 µs |
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 176 ºF (80 ºC) |
| Reconnect Temperature | 122 ºF (50 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
Mechanical Specifications
| Dimensions (L x W x H) | 12.80 x 6.70 x 8.66” (325*170*220mm) |
| Weight | 30.84lbs (14kg) |
| Terminal Type | M8 （20mm） |
| Terminal Torque | 10 ~12 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Brand | EVE Energy Co., Ltd |
| Product | Prismatic Aluminum-clad LFP Battery |
| Model | LF105 |
| Specification | 3.2 V / 50 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
